Description

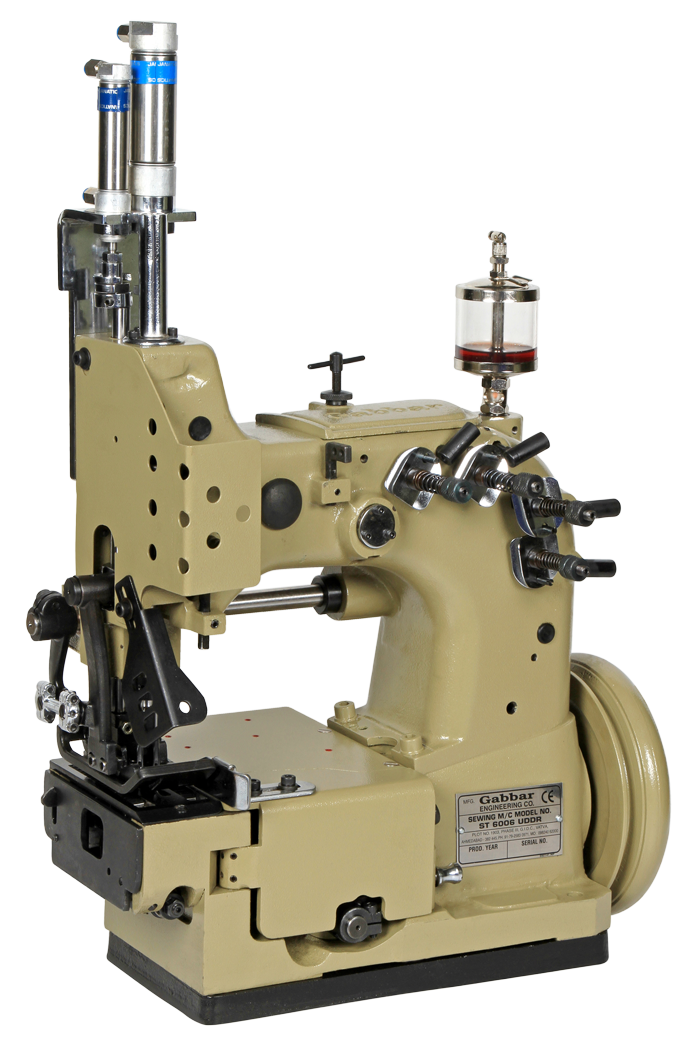

Double Needle, Four Thread Chain Stitch Sewing Machine with Upper & Lower Feed, with Pneumatic Pressure Foot Lifting System & Hot Thread Chain & Filter Cord Cutter.
Features:
-
Designed for Big Bag Production.
-
Filler Cord from Top and Bottom.
-
Double Transport from Above and Below for Heavy to light weight fabrics.
-
Pneumatically Operated Pressure foot Lifting System.
-
Hot Wire Cutter for Cutting & Melting of Polypropylene Thread Chain & Filler Cord, Maximum Melting Dia 8 mm.
-
Uniform Feeding & Stitching.
-
High Sewing Capacity.
-
Low Maintenance.
-
Low Wear & Tear.
Technical Details
Model
ST - 6006 UDDR-HC
Max. speed (R.P.M) Approx.
1800 RPM
Working Speed
Approx. 1600 R.P.M. (Depends on Sewing Material)
Stitch Range (100mm)
6 to 13 mm
Sewing Capacity (mm)
15 mm – 18 mm
Needle Size
UY9848GS 300/20 (Groz – Beckert)
Motor
1 H.P. 2800 RPM
ST-6006 UDDR-HC With Stand
