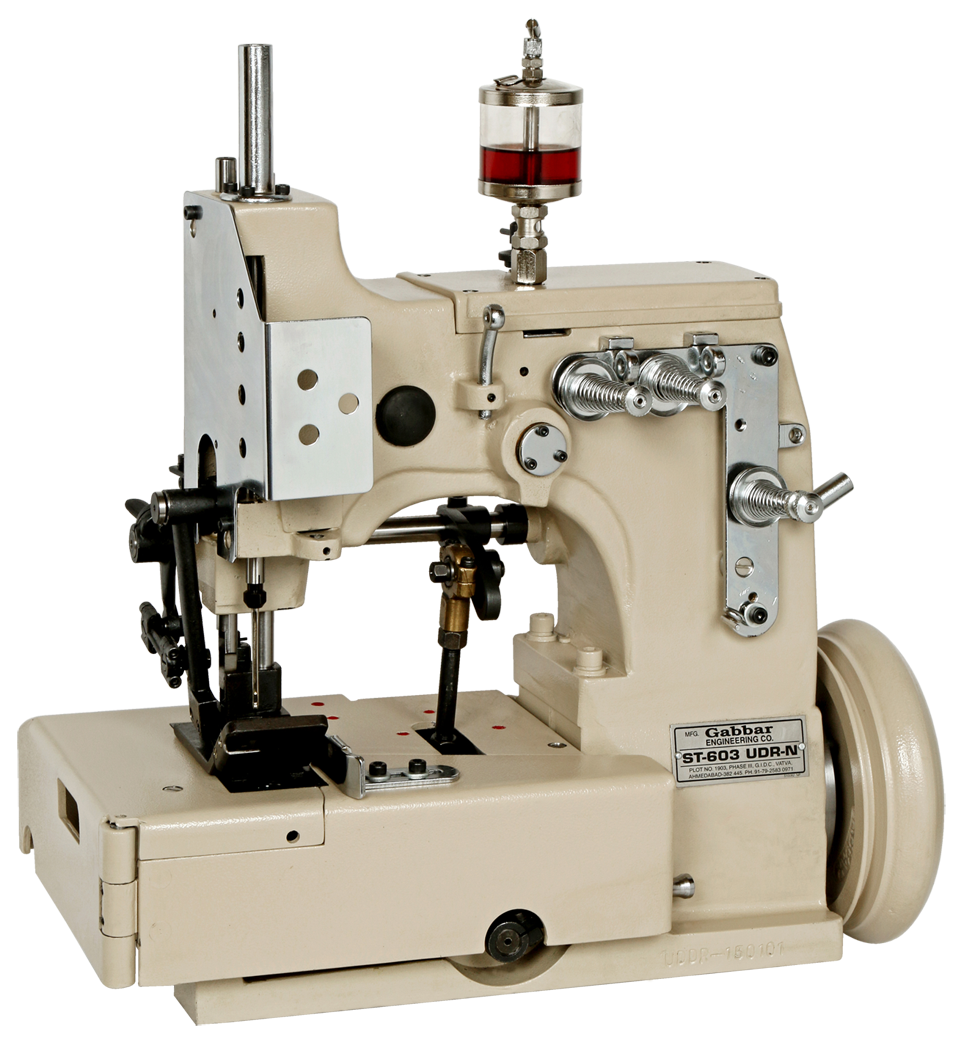

FIBC Jumbo Bag Sewing Machine – ST 603 UDR-N

SKU: N/A

Description

Gabbar Engineering Co. manufacturer Industrial FIBC Bag Sewing Machine, accessories and its parts. We supply widely sewing machines, spares & grow strong business relation. For even Coordinated part lines on heavy weight fabrics, Applicable for lines on container bags. Part lines, Cut-in Top un-laminated, Attaching filling and emanation tubes with sealing material cords from the Top and From Below For Sealing the Left Side Needle Holes.



Application:
  • For even matched side Seams on Heavy Weight Fabrics.
  • Applicable for all Seams on Container Bags.
  • Side Seams, inserting Top Cover, attaching Filling & discharging tubes with filler cord from the top & from below for Sealing the Needle Punctures.
* Single Needle, Double Thread, Heavy Duty Chain Stitch Machine with Plain Feed and Synchronized Upperfeed, alternating Upper feed dog and pressure foot.

Technical Details

Max. speed (R.P.M.)Approx.

1,800

Working Speed

Approx. 1600 R.P.M. (Depends on Sewing Material)

Stitch Range (100 mm)

06 13

Sewing Capacity (mm)

Upto 15 mm

Needle Size

UY9848GS 29/120 (Schmetz)

No. of Needle

One

No. of Thread

Two

Thread Type

Multi Filament, Fabricatred Yarns

Lubrication

SEMI Automatic

Motor

1 H.P 1 or 3 phase 1425-2850 RPM
