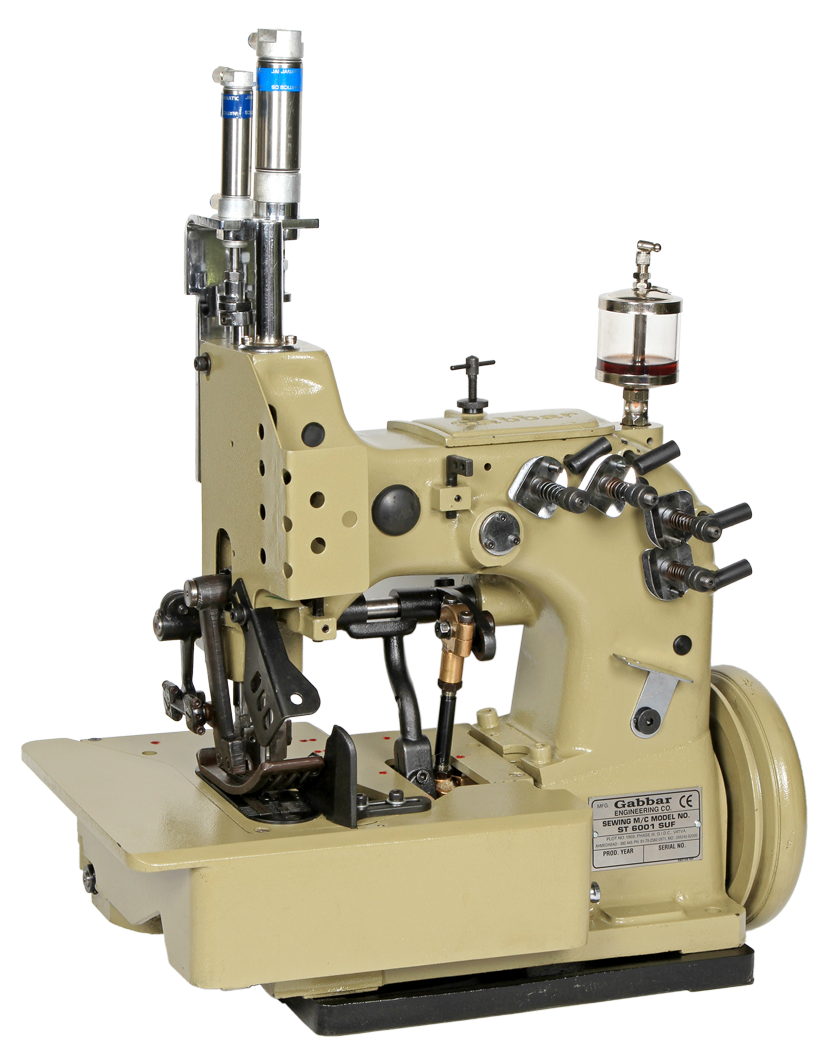

FIBC Jumbo Bag Sewing Machine – ST 6001 SUF

SKU: N/A

Description

Gabbar Engineering Co. manufacturer Industrial FIBC Bag Sewing Machine, accessories and its parts. We supply widely sewing machines, spares & grow strong business relation. For even Coordinated part lines on heavy weight fabrics, Applicable for lines on container bags. Part lines, Cut-in Top un-laminated, Attaching filling and emanation tubes with sealing material cords from the Top and From Below For Sealing the Left Side Needle Holes.



Features:
  • Designed for Big Bag production to sew overlock and safety stitches simultaneously
  • Feeding of Filler cord from above and below
  • Upper and lower feed
Application:
  • For even matched side seams(Overedging with safety stitch)on very heavy container bag.
  • Made of Woven polypropylene fabrics
* Double Needle, Four Thread Combined Overedging and Chain Stitch (Safety Stitch) Sewing Machine with Lower Feed & Alternating Upper Feed.

Technical Details

Model

ST 6001 SUF

Max. speed R.P.M.

1600 rpm

Working Speed

1400 Depending on Sewing Material

Stitch Range (100 mm)

6 13

Sewing Capacity (mm)

Upto 18 mm

Overseam Width

10 mm & 17 mm

Maximum Stitch Width

22 mm

Needle

UY9853GA 400/33,430/34 UY9848GS 300/29 (Groz-Beckert)

Motor

1 H.P., 2800 RPM
